M SATA
Showing all 5 results
-
Internal SSD, M SATA
m SATA 128GB SSD
Specifications:
(1) Form Factor mSATA
(2) NAND FLASH 3D TLC
(3) Interface SATA 6.0 Gbps interface
(4) Sequential Read (max.) Sequential Read: Write:up to 520MB/s 320MB/s
(5) Maximum 4K Read/ Write up to 79,000/18,000 IOPS
(6) Power Consumption 0.195W idle / 0.5W Avg / 1.17W (MAX)Read / 2.32W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 50.8mm x 29.85mm x 4.85mm
(10) Weight 6.2g
(11) Vibration operating 2.17G Peak(7-800Hz)
(12) Vibration non-operating 20G Peak ( 10-2000Hz)
(13) Total Bytes Written (TBW) 128GB- 60TBAvailable on:
SKU: EVMMS/128GB -
Internal SSD, M SATA

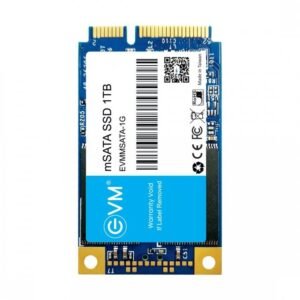

m SATA 1TB SSD
Specifications:
(1) Capacity 1TB
(2) Form Factor mSATA
(3) NAND FLASH 3D TLC
(4) Interface SATA 6.0 Gbps interface
(5) Sequential Read (max.) Sequential Read: Write:
up to 520MB/s 500MB/s
(6)Maximum 4K Read/ Write up to 79,000/18,000 IOPS
(7) Power Consumption 0.195W idle / 0.5W
Avg / 1.17W (MAX)
Read / 2.32W (MAX)
Write
(8) Storage Temperature -40*C to 85*C
(9) Operating Temperature 0*C to 70*C
(10) Dimensions 50.8mm x 29.85mm x 4.85mm
(11) Weight 6.7g
(12) Vibration operating 2.17G Peak(7-800Hz)
(13) Vibration non-operating 20G Peak ( 10-2000Hz)
(14) Total Bytes Written (TBW) 512GB- 200TB
(15) Warranty 5 Years WarrantySKU: EVMMS/1TB -
Internal SSD, M SATA

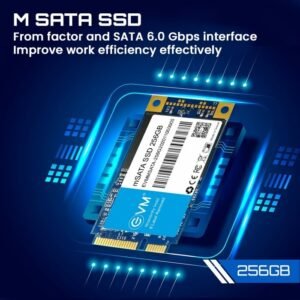

m SATA 256GB SSD
Specifications:
(1) Form Factor mSATA
(2) NAND FLASH 3D TLC
(3) Interface SATA 6.0 Gbps interface
(4) Sequential Read / Write Sequential Read: Write:up to 520MB/s 500MB/s
(5) Maximum 4K Read/ Write up to 79,000/25,000 IOPS
(6) Power Consumption 0.195W idle / 0.5WAvg / 1.17W (MAX)Read / 2.32W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 50.8mm x 29.85mm x 4.85mm
(10) Weight 6.7g
(11) Vibration operating 2.17G Peak(7-800Hz)
(12) Vibration non-operating 20G Peak ( 10-2000Hz)
(13) Total Bytes Written (TBW) 256GB- 100TBAvailable on:
SKU: EVMMS/256GB -
Internal SSD, M SATA
m SATA 512GB SSD
Specifications:
(1) Form Factor mSATA
(2) NAND FLASH 3D TLC
(3) Interface SATA 6.0 Gbps interface
(4) Sequential Read (max.) Sequential Read: Write:up to 520MB/s 500MB/s
(5) Maximum 4K Read/ Write up to 79,000/18,000 IOPS
(6) Power Consumption 0.195W idle / 0.5W Avg / 1.17W (MAX)Read / 2.32W (MAX)Write
(7) Storage Temperature -40*C to 85*C
(8) Operating Temperature 0*C to 70*C
(9) Dimensions 50.8mm x 29.85mm x 4.85mm
(10) Weight 6.7g
(11) Vibration operating 2.17G Peak(7-800Hz)
(12) Vibration non-operating 20G Peak ( 10-2000Hz)
(13) Total Bytes Written (TBW) 512GB- 200TBAvailable on:
SKU: EVMMS/512GB
