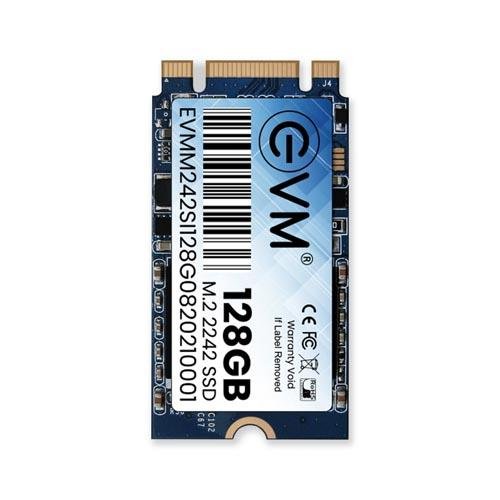

EVM 128GB 2242 M.2 SATA SSD EVMM242/128GB
(1) Form Factor M.2 (2242) SSD EVM 128GB 2242 M.2 SATA SSD EVMM242/128GB
(2) Interface SATA III6Gb/s
(3) Flash Type 3D NAND flash
(4) Performance Read / Write (max.)Sequential Read: Write:up to 520MB/s400MB/s
(5) 4K Random Read/ Write (IOmeter) Read :50,000 IOPSWrite 75,000 IOPS
(6) Mean Time Between Failure (MTBF)2,000,000 hours (s)
(7) Terabytes Written 160 TB
(8) Power Consumption 0.820W Idle
1.05W (MAX) Read 1.55W (MAX) Write A (Unit)
(9) Operating Voltage 3.3V 5%
(10) Storage Temperature -40*C to 85*C
(11) Operating Temperature 0*C to 70*C
(12) Weight 5g
(13) Dimensions 42.0 mm x 22.0 mm x 3.85mm
₹1,003 ₹2,999
| Weight | 0.1 kg |
|---|---|
| Capacity | 128 GB SSD |
| Interface | 2242 M.2 SATA SSD |
| Max Sequential Read | Up to 520 MBps |
| Max Sequential Write | Up to 400 MBps |
| User Type | Consumer SSD |
| Warranty | 5 Years |
EVM 128GB 2242 M.2 SATA SSD EVMM242/128GB
Overview of EVM 128GB 2242 M.2 SATA SSD EVMM242/128GB
(1) Form Factor M.2 (2242) SSD
(2) Interface SATA III6Gb/s
(3) Flash Type 3D NAND flash
(4) Performance Read / Write (max.)Sequential Read: Write:up to 520MB/s400MB/s
(5) 4K Random Read/ Write (IOmeter) Read :50,000 IOPSWrite 75,000 IOPS
(6) Mean Time Between Failure (MTBF)2,000,000 hours (s)
(7) Terabytes Written 160 TB
(8) Power Consumption 0.820W Idle
1.05W (MAX) Read 1.55W (MAX) Write A (Unit)
(9) Operating Voltage 3.3V 5%
(10) Storage Temperature -40*C to 85*C
(11) Operating Temperature 0*C to 70*C
(12) Weight 5g
(13) Dimensions 42.0 mm x 22.0 mm x 3.85mm
Specification of EVM 128GB 2242 M.2 SATA SSD EVMM242/128GB
| Brand | EVM SSD |
| Capacity | 128 GB |
| Interface | 2242 M.2 SATA |
| Max Sequential Read | Up to 520 MBps |
| Max Sequential Write | Up to 400 MBps |
| Warranty | 5 Years |
| User Type | Consumer SSD |
