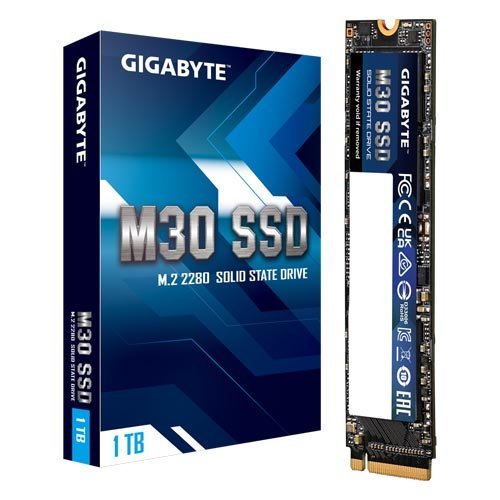

Gigabyte M30 1TB PCIe 3.0×4 NVMe SSD GP-GM301TB-G

Gigabyte M30 1TB PCIe 3.0×4 NVMe SSD GP-GM301TB-G

Overview :

Xtreme Storage Performance

With the high-quality controller and flash, GIGABYTE M30 SSD can reach up to 3500 MB/sec sequential read, and up to 2600 MB/s sequential writes. Moreover, it comes with the DDR3L DRAM, SLC Cache, and advanced LDPC error correction to enhance the performance. It’s an ideal choice for gamers, PC enthusiasts, and content creators.

• PCIe 3.0×4, NVMe 1.3 interface
• SLC Cache
• External 2Gb DDR3L Cache
• Advanced LDPC error correction
• 2 oz PCB design for efficient thermal solution

Breaking Limitations

GIGABYTE M30 SSD delivers outstanding performance: up to 3500 MB/sec sequential read, and up to 3000 MB/s sequential write. Equipped with a robust combination of controller and 3D NAND, M30 is up to 6 times faster than SATA III Solid State Drives and reach the limit of PCIe Gen3x4.

Ultra Durable, 2 oz copper PCB Design

Under a high-stress workload, most SSD controllers can peak over 70°C. In this situation, the drives will start slowing down to avert itself from failing. The hotter your SSD runs, the quicker it wears out the flash inside of the drive. GIGABYTE M30 SSD applied with 2 oz copper PCB design, which helps dissipate heat and prevent throttling.

Why is keeping A SSD at lower tempertures so important?

Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With 2 oz coppetr PCB, GIGABYTE M30 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can running at extreme performance longer.

*The test result is based on internal testing for reference only, actual performance may vary underdifferent circumstances.

Lower temperature, better performance

GIGABYTE M30 SSD not only offers incredible performance but also handles heavy workloads without overheating. Thanks to the improved efficiency thermal solution by using 2 oz copper PCB, GIGABYTE M30 SSD decrease 16% working temperatures compare with regular SSD without a heatsink.

*The test result is based on internal testing for reference only, actual performance may vary underdifferent circumstances.

External DDR3L DRAM Cache

GIGABYTE M30 SSD is equipped with high speed DDR3L DRAM cache and does not need to reserve over-provisioning space, thus improving the random Read/Write performance. This means the users can use the full capacity of the drive. Moreover, external DRAM can be a buffer between controller and NAND flash for sustained performance when capacity is occupied by more and more data.

Reliability You Can Trust – 5 Years Limited Warranty

GIGABYTE M30 SSD possess both high data transferring speed and enhanced endurance, providing durable MTBF 2 million hours and 5 years or 350TBW limited warranty.

SSD Tool Box

The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.

Specification :
